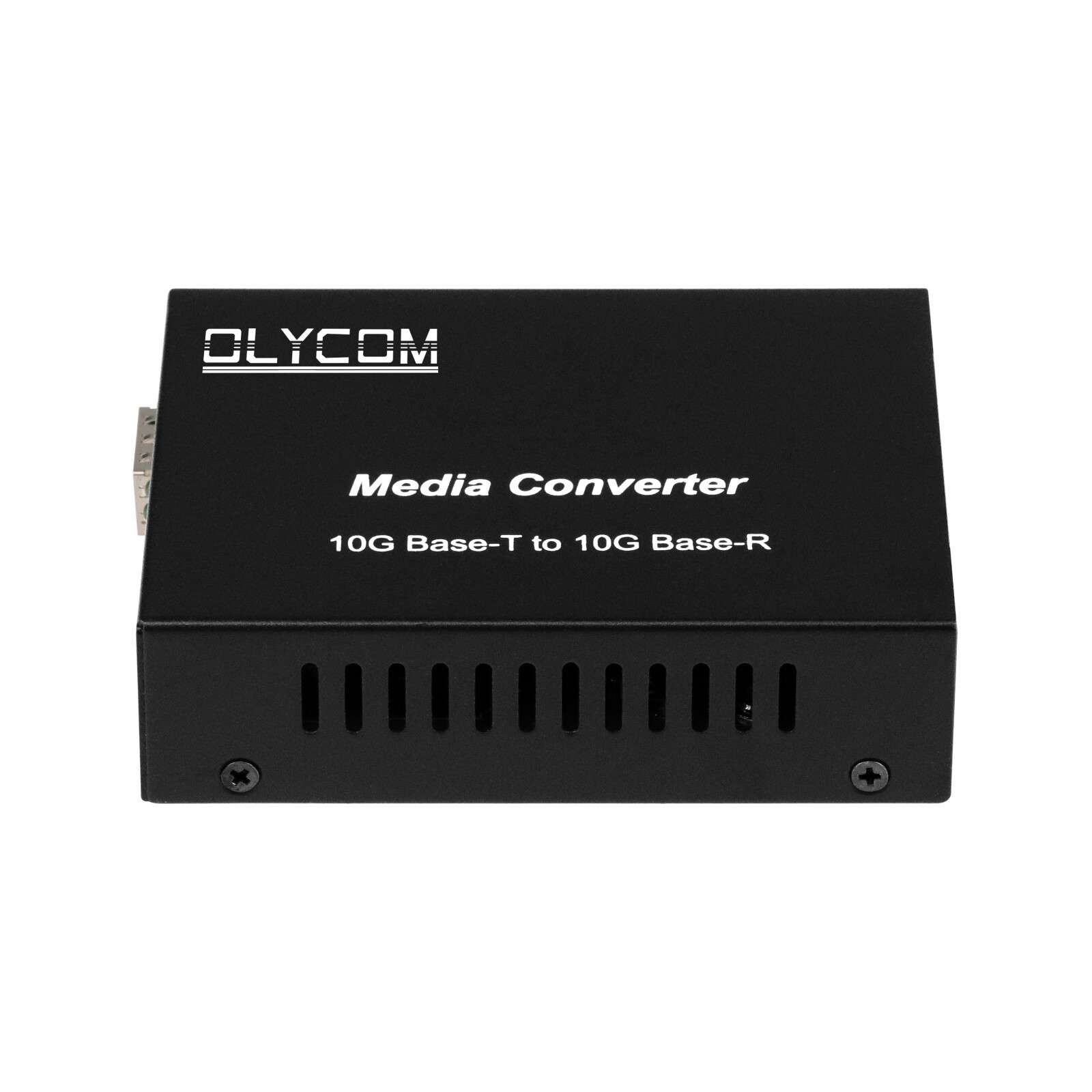

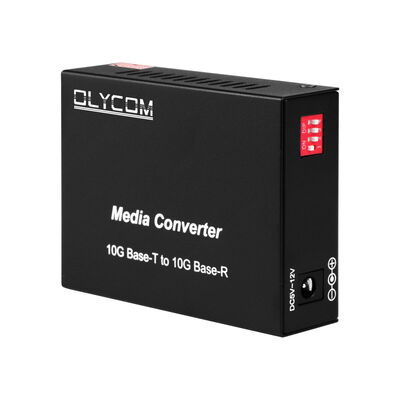

Key Features of 10G SFP+ Fiber Media Converter
Specification of SFP+ Optical Fiber To RJ45 Converter
|
Transmission Speed |
10M/100M/1.25G/2.5G/5G/10Gb/s |
|
Protocols |
IEEE802.3an(10Gbase-T) ,IEEE802.3ae(10Gbase-SR/LR/ER/ZR) |
|
Interface Type |
Type: RJ45 To/From SFP+ |
|
Transmission Distance |
Up to SFP module (Max 40Km) Up to SFP+ module (Max 80Km) Up to SFP module (Max 40Km) Up to XFP module (Max 80Km) 10Gbase-T: 100meters Cat .6a cable |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Power Requirement |
Standalone: DC 5-12V (external power) Power consumption: ≤5W |
|
MAC Address |
2K |
|
Jumbo Frame |
10K |
|
Cable Type(Fiber) |
Multimode 50/125µm, 62.5/125µm Single-mode 9/125µm |
|
Cable Type(Copper) |
UTP Cat 5, 5e, 6,6a Cable |
|
DIP Switch |
LFP/ALS/Media Conversion Mode(see bottom table) |
|

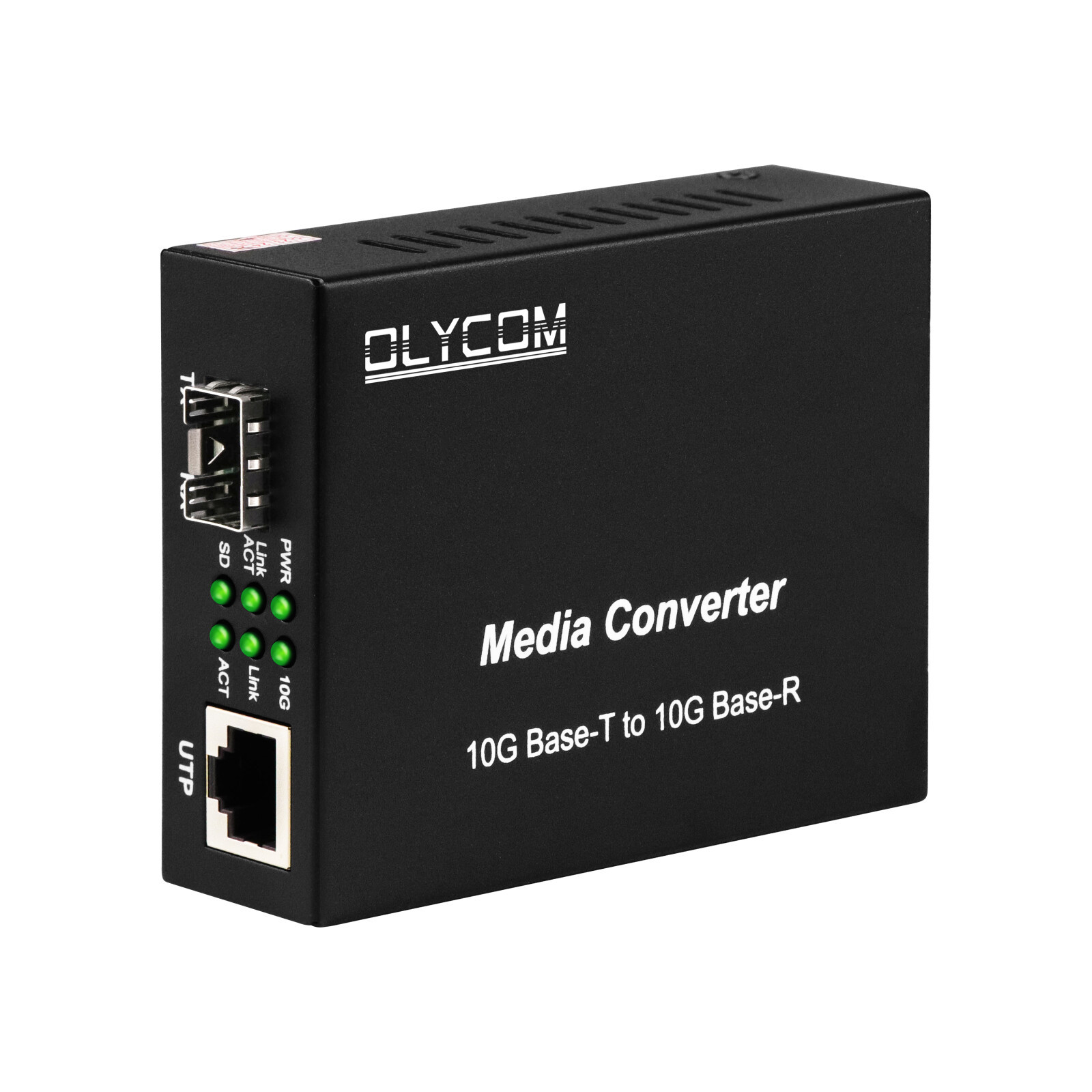

LED Indicatiors |
TP/LNK,SPD,FX/LNK,PWR |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90%(non-condensing) |
|
Housing |
Metal, IP30 |
|
Dimension |
Standalone :60 (W) x 20 (H) x 90 (L) (mm) |
|
Weight |
0.12kg |
Application

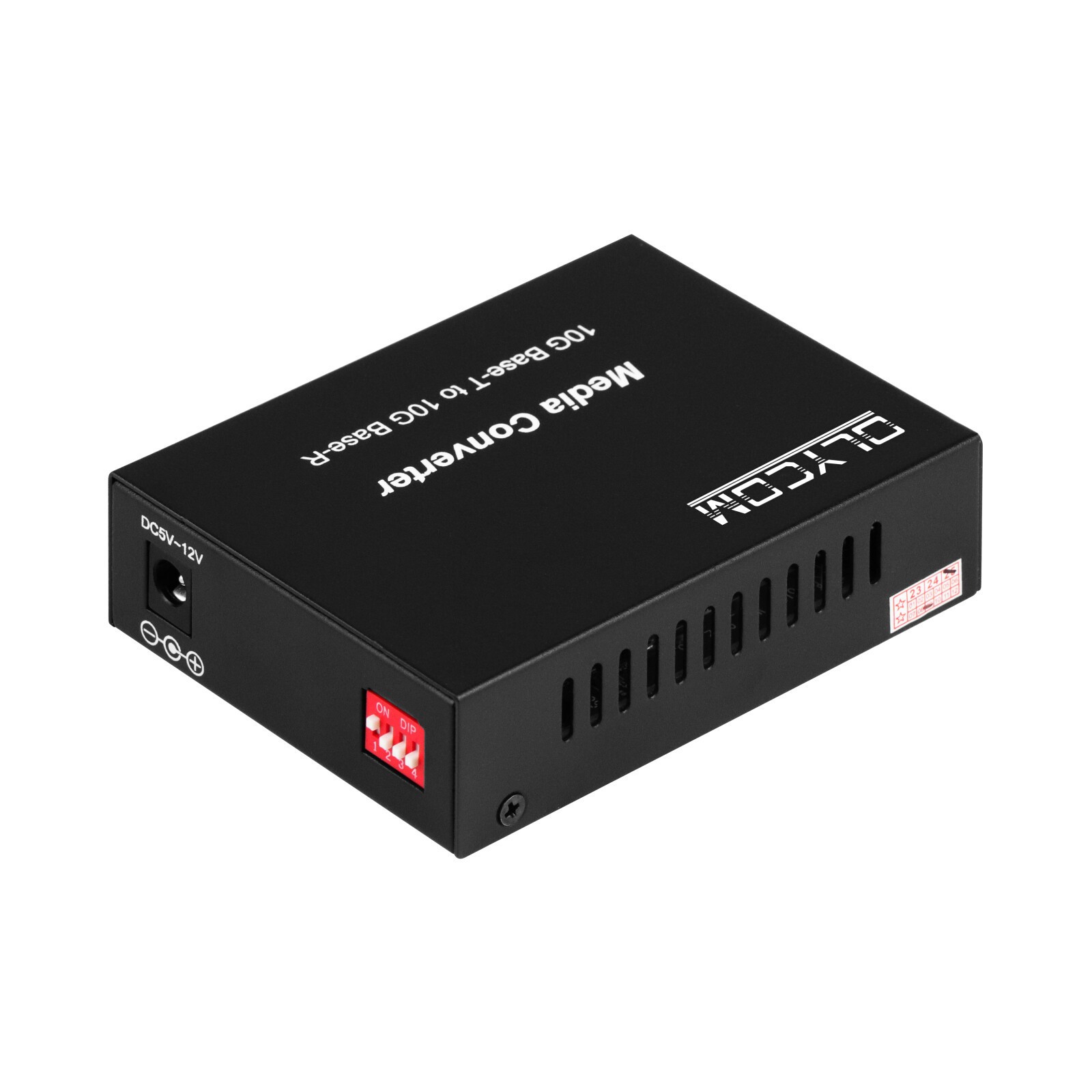

DIP Switch
|
Function |
Status |
Description |
|
LFP |
Off |
LFP Disable |
|
On |
LFP Enable |
|
|
ALS |
Off |
Disable |
|
On |
Enable |
|
|
Media Conversion Mode |
Off |
1:TP=10G,FX=10G 2:TP=10/100/1000M, FX=1G |
|
On |
||
|
Off |
TP=10/100/1000M/10G, FX=10G |
|
|
On |
1. LFP: Link fault pass through, When enabled, the UTP receiver is passed to the fiber transmitter to make the media converter appear transparent to the connected end devices. It uses link fault passthrough to indicate when far-end fault issues occur. If a fault occurs, the end device indicates a failure for troubleshooting.
2. ALS: automatic laser shutdown is a procedure to automatically shut down the laser when there is no input light and stop emitting optical signals.
3. FX: Optical Fiber Port
4. FX Reset: When enabled, the PoE will restart if there is no data input to the UTP receiver.
Packing
FAQ:
1. Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
