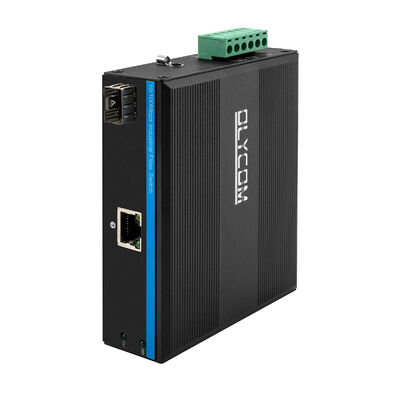

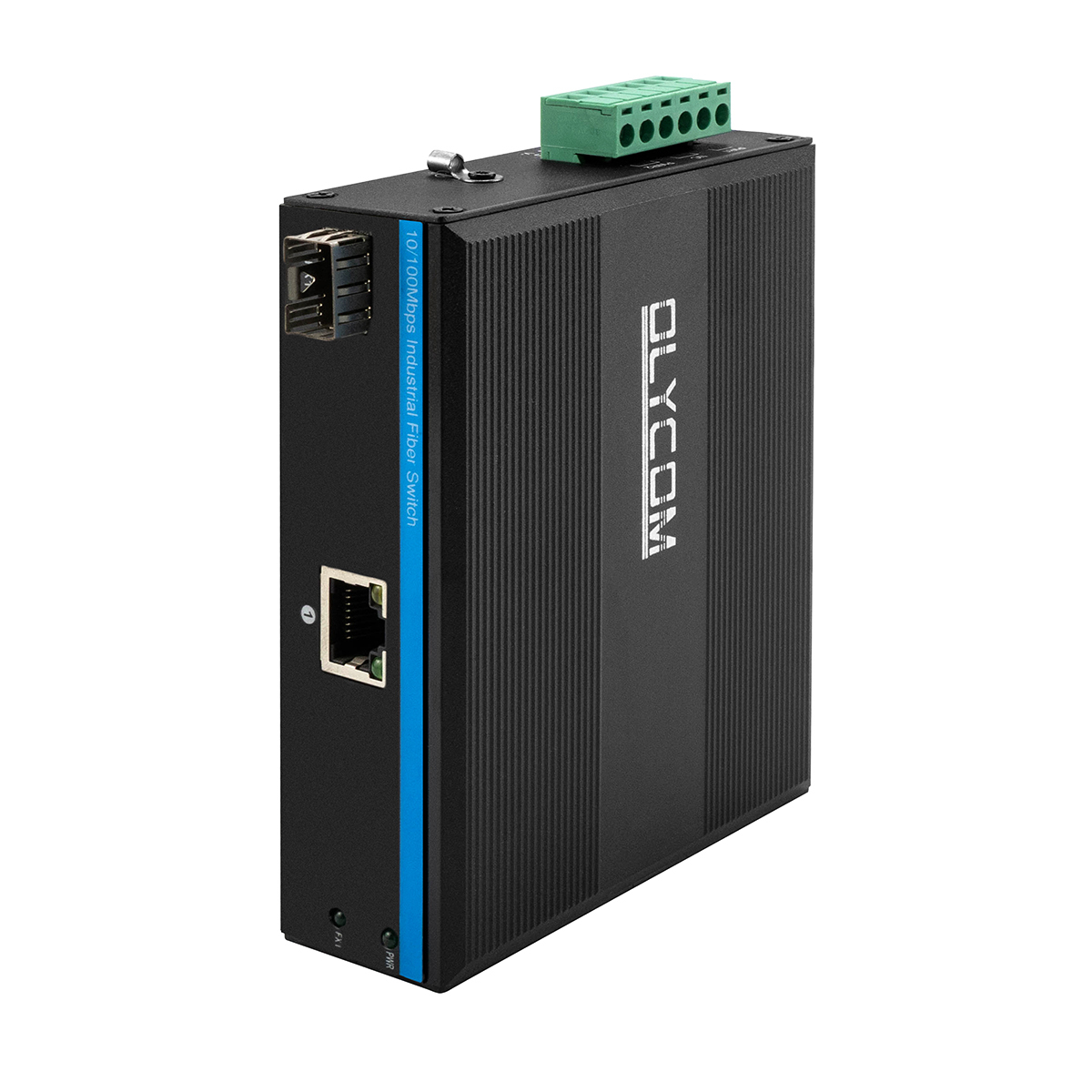

Outdoor Fast Ethernet Media Converter
Specification
|
Product Name |
10/100Mbps Industrial Fiber Media Converter (1TP+1F) |
|
Model No. |
IM-MC110FE |
|
Port |
1 x 100Mpbs port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
|
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
|
LEDs |
Power, network, fiber |
|
Power supply |
Input voltage:DC 9-52V No-load power:5W Reverse connection:support |
|
Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
|
Safety |
CE Mark ,commercial CE/LVD EN60950 |
|
Mechanical information |
Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
|
Warranty |
Replacement within 1year; 5 years repairing |
Introduction
A Simple Tool That Solves a Real Industrial Problem
The Olycom IM-MC110FE is not designed to be complex — it is designed to be useful.
In many industrial environments, a large number of field devices still rely on 10/100Mbps Ethernet: PLCs, sensors, controllers, legacy monitoring units. These devices work reliably, but copper Ethernet limits transmission distance to 100 meters, which is often insufficient for factories, railways, substations, or outdoor sites.
The IM-MC110FE quietly removes this limitation.
By converting a standard RJ45 Ethernet signal into fiber, it allows low-speed industrial devices to communicate over kilometers of optical fiber — up to 120 km, without changing existing equipment or network architecture. There is no configuration, no management interface, and no learning curve. Once powered on, it simply works.
Built for industrial deployment rather than office racks, the IM-MC110FE operates from -40°C to +85°C, uses an IP40 metal enclosure, and integrates 4KV Ethernet surge protection to survive electrically noisy environments. It is a small device, but one that often sits at the edge of systems expected to run 24/7 without interruption.
Key Features
1. Focused, Purpose-Built Design

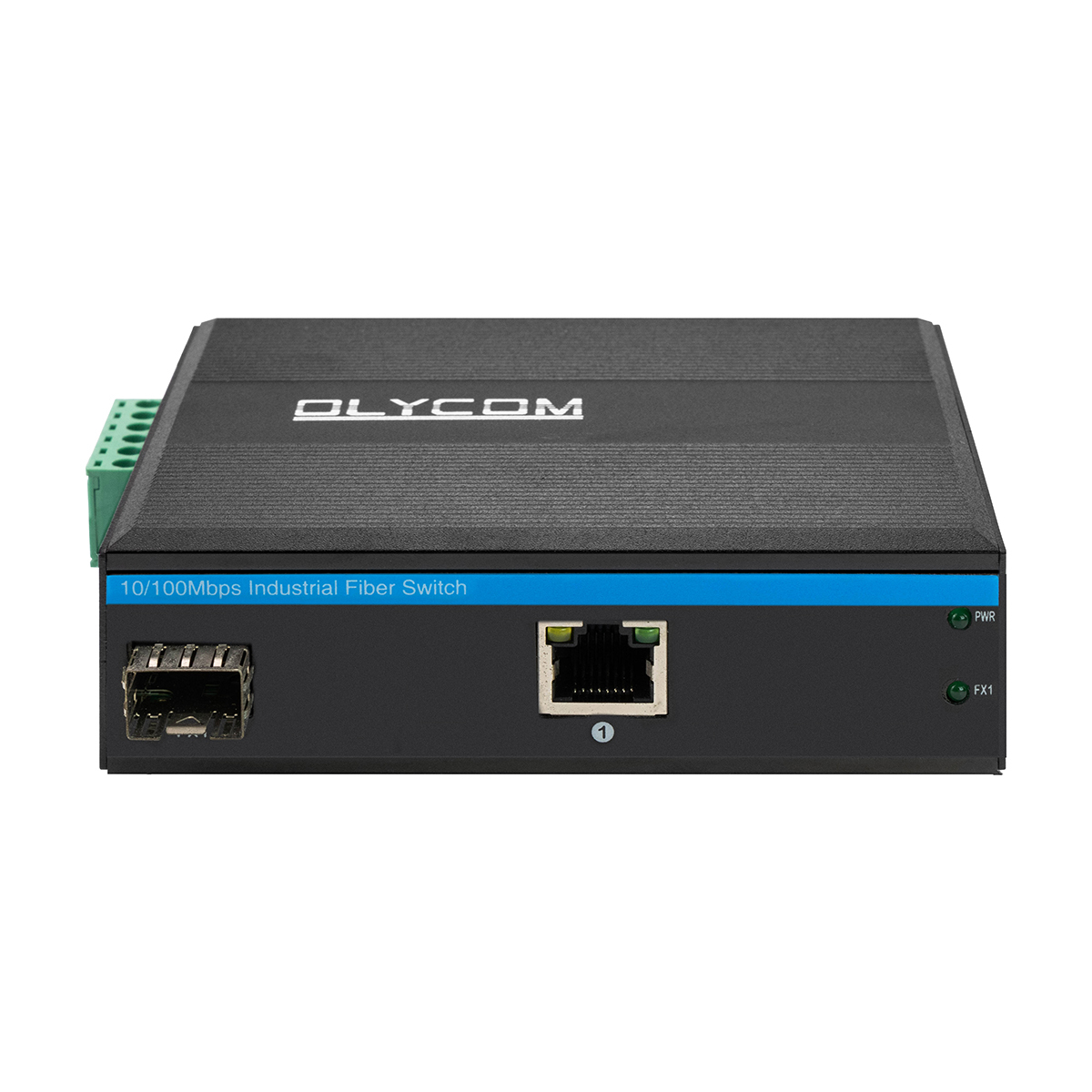

One Fiber Port, One Copper Port — Nothing Extra
The IM-MC110FE follows a deliberately minimal design philosophy:
1 × 100Mbps SFP fiber port, supporting single-mode and multi-mode modules
SM: 20 km to 120 km (depending on wavelength)
MM: up to 2 km
1 × 10/100Mbps RJ45 Ethernet port, auto-negotiation and MDI/MDIX supported
This simplicity reduces failure points and makes the device easy to deploy in tight control cabinets or remote field boxes.
2. Designed to Survive Electrical Noise
Industrial environments are rarely clean:
motors start, relays switch, lightning strikes nearby.
The IM-MC110FE is engineered to handle this reality:
4KV Ethernet surge protection
ESD Level 3 (EN 61000-4-2)
EFT Level 3 (EN 61000-4-4)
These protections help prevent communication failures caused by electrical interference, especially in outdoor or rail-side installations.
3. Stable Transmission Without Configuration
Internally, the device uses store-and-forward forwarding, ensuring data integrity even during burst traffic.
It supports:
IEEE 802.3x flow control (full-duplex)
Back pressure (half-duplex)
This allows connected industrial devices to communicate reliably without packet loss, even when traffic conditions fluctuate.
Wide Power Input for Industrial Cabinets
Power environments vary widely in industrial sites.

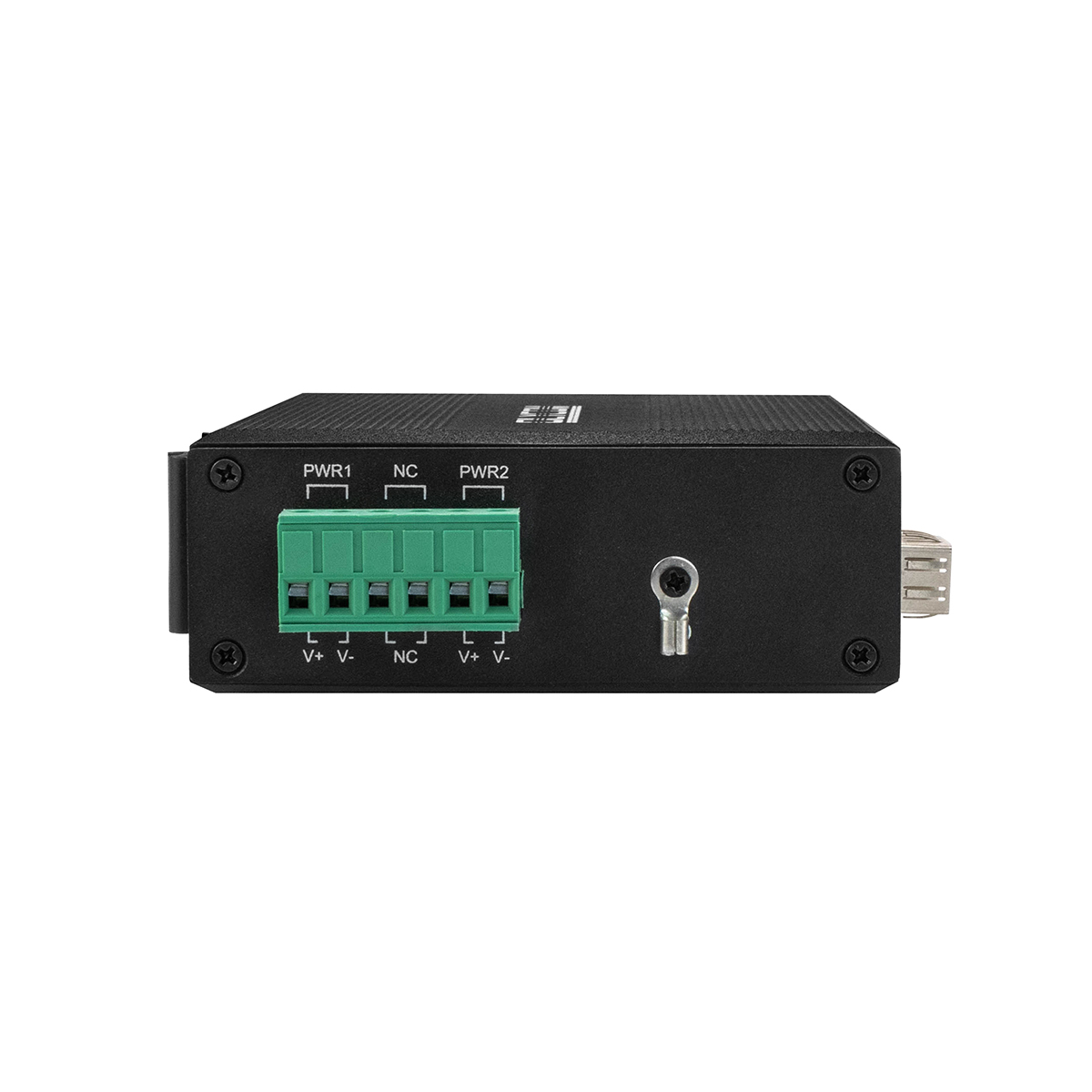

The IM-MC110FE supports:
DC 9–52V wide voltage input
Reverse-polarity protection
Low power consumption (≤5W)
This makes it easy to integrate into existing control systems without adding dedicated power converters.
Mount It, Power It, Forget It
DIN-rail mounting
Compact footprint (113.8 × 93 × 34.9 mm)
Fanless, non-managed design
Once installed, no ongoing maintenance or configuration is required — ideal for deployments where access is limited or costly.
Application
Where It Quietly Adds Value
Extending Ethernet Beyond Copper Limits
Converts short-range copper Ethernet (≤100 m) into long-distance fiber links (up to 120 km), enabling legacy industrial devices to connect to centralized control systems.
Industrial Field Device Connectivity
Used in production lines, workshops, and industrial parks to connect PLCs, sensors, and controllers to fiber backbones without upgrading endpoint hardware.
Transportation & Rail Infrastructure
Compliant with EN 50121-4, suitable for:
Trackside communication cabinets
Rail signaling support systems
Traffic monitoring equipment
Fiber connectivity ensures long-distance transmission while resisting vibration, temperature variation, and electrical interference.
Energy & Utility Monitoring
Ideal for substations, water treatment plants, and remote monitoring stations where:
Distances are long
Power conditions are unstable
Maintenance access is limited
Harsh, Small-Scale Industrial Deployments
Mining, petrochemical, and metallurgy environments benefit from:
IP40 dust protection
Wide temperature operation
Surge and ESD resistance
In these scenarios, the IM-MC110FE acts as a quiet, reliable bridge between the field and the network core.
Accessories
|
Industrial Optical Module |
|
|
OSPL1E06D-85 |
100BASE-FX(850nm) |
|
OSPL1E06D |
100BASE-FX |
|
OSPL1E20D |
100BASE-LX |
|
OSPL1E40D |
100BASE-EX |
|
OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
|
OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
|
Industrial DIN Power Supply |
|
|
IM-DAC220/DC48V1.6A |
AC220V to DC48V1.6A, -30℃～70℃ |
|
IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40℃～70℃ |
