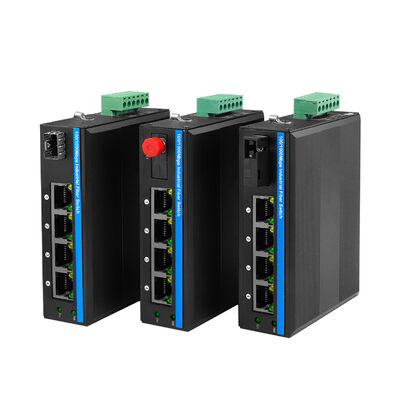

4 Port PoE/PoE+ Fast Ethernet Industrial Fiber Switch
Technical Data of Rugged Ethernet Switch
|
Product Name |
10/100Mbps Industrial PoE Fiber Switch(1F+4TP) |
|
Model No. |
IM-FP144FE |
|
Port |
1x100M SFP Fiber SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) 1x6-PIN Power Terminal Block |
|
Protocol |
IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3af 15.4W(PoE) IEEE 802.3at 30W(PoE+) |
|
Switching Features |
Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 1Gbps (non-traffic jam) Forwarding rate: Mmps MAC: 4K Packet buffer size: 1.75Mb |
|
Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
|
LEDs |
Power, Fiber, Network, PoE PWR: Power
Fiber: FX1 On: transmission is normal Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator On: PoE is working Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator On: transmission speed is 1000Mbps Blinking: in transmission Off: Disconnected or working speed is 10/100Mbps |
|
Power Consumption |
Full loading without PoE≤5W |
|
Power Supply |
PoE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W (port 1~4) PoE output voltage: 48V Reverse connection: support |
|
PoE Wiring |
1/2 (V+), 3/6 (V-) |
|
Environment |
Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
|
Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
|
Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
|
Mechanical information |

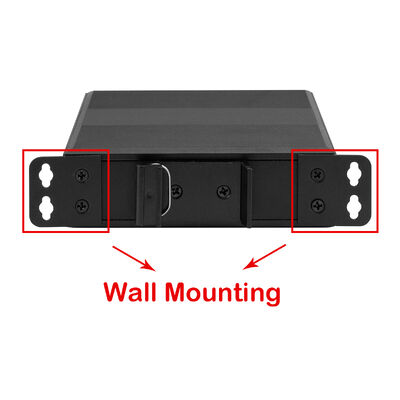

Shell: Corrugated metal shell, IP40 grade level Dimension: 114*93*35mm Mounting method: Din-rail/Wall mounting Weight: 0.35Kg/0.45Kg(Net/Gross) |
|
Warranty |
3 years, lifetime technical support |
Introduction to 4 Port PoE Switch
When One Fiber Link Needs to Feed Multiple Devices
The IM-FP144FE is built for a very common industrial reality:
you don’t need a big switch — you just need several PoE devices working reliably at the edge, all tied back to a single fiber uplink.
With four Fast Ethernet PoE ports and one long-reach fiber interface, this compact industrial switch acts as a local power-and-connectivity hub, sitting exactly where devices are installed — not in an air-conditioned server room.
Four Devices, One Box, Zero Configuration
In real deployments, field engineers often face the same constraints:
Limited cabinet space
No convenient AC outlets
Harsh electrical and environmental conditions
IM-FP144FE answers that with a simple formula:
4 × IEEE 802.3af PoE ports (15.4W per port)
1 × 100Mbps SFP fiber uplink
No management, no setup, no learning curve
Cameras, wireless APs, or PoE sensors are powered instantly through Ethernet cables, while fiber carries their data safely over long distances.
Fiber First, Copper Only Where It Belongs
Copper Ethernet is great locally — and terrible over distance.
This switch keeps copper where it makes sense (the last 100 meters) and hands everything else to fiber.
The SFP port supports long-distance transmission up to 120 km, allowing IM-FP144FE to:
Sit close to equipment
Avoid electromagnetic interference
Bypass grounding and lightning risks common in outdoor and industrial sites
It’s a clean, reliable bridge between messy field environments and centralized control networks.
Built to Be Ignored (In a Good Way)
Once installed, this device is meant to disappear into the background.
-40°C to 75°C operating range
IP40 metal enclosure
Protection against ESD, surge, and electrical noise
Certified for transportation and rail environments (EN 50121-4)
No fans. No software updates. No remote access required.
Just continuous operation.
Why Non-Managed Is the Right Choice Here
For small PoE clusters, management often adds risk instead of value.
IM-FP144FE deliberately avoids:
Configuration errors
Firmware compatibility issues
Training requirements
This makes it especially attractive for large-scale rollouts, where dozens or hundreds of identical units must behave predictably in the field.
Typical Deployment Scenarios
1. Compact Surveillance Clusters
Power and connect up to four IP cameras in workshops, factory zones, or perimeter areas, all feeding video back over a single fiber link.
2. Industrial Sensor Aggregation
Collect data from multiple PoE sensors or monitoring devices in one location, then transmit everything upstream to SCADA or monitoring platforms.
3. Roadside & Trackside Installations
In traffic systems and rail infrastructure, one unit can power several monitoring devices inside a cabinet while fiber handles long-distance communication to control centers.
4. Utilities & Remote Facilities
Used in substations, pumping stations, or treatment plants where environmental tolerance and electrical robustness matter more than advanced switching features.
5. Harsh Industrial Sites
Mining, petrochemical, and metallurgy environments benefit from the dust-resistant enclosure and stable PoE delivery without extra power wiring.
The Takeaway
The IM-FP144FE is not about scaling bandwidth or managing traffic flows.
It’s about cleanly powering multiple devices and moving their data out of difficult environments — reliably, simply, and for years at a time.
Mechnical Drawing
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
Accessories
|
Industrial Optical Module |
|
|
OSPL1E06D-85 |
100BASE-FX(850nm) |
|
OSPL1E06D |
100BASE-FX |
|
OSPL1E20D |
100BASE-LX |
|
OSPL1E40D |
100BASE-EX |
|
OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
|
OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
|
Industrial DIN Power Supply |
|
|
IM-DAC220/DC12V1.67A |
AC220V to DC12V1.67A, -30℃～70℃ |
|
IM-DAC220/DC24V1A |
AC220V to DC24V1A, -30℃～70℃ |
